Palliative splenic irradiation for symptomatic splenomegaly in non-Hodgkin lymphoma
Liliana Castro Oliveira1, Carlos Fardilha2, Manuel Louro2, Carlos Pinheiro2, Abílio Sousa2, Herlander Marques3,4,5 and Paulo Costa2
1Department of Oncology, Hospital da Senhora da Oliveira, Guimarães, Portugal
2Department of Radiation Oncology, Hospital de Braga, Braga, Portugal
3Department of Oncology, Hospital de Braga, Braga, Portugal
4Clinical Academic Centre, Braga, Portugal
5Centre for Health Technology and Services Research, Porto, Portugal
Correspondence to: Liliana Castro Oliveira. Email: 4177@hospitaldeguimaraes.min-saude.pt
Abstract
Introduction and aims: Splenic marginal zone lymphoma, an uncommon subtype of non-Hodgkin lymphoma (NHL), is usually present with symptomatic splenomegaly. Although splenectomy has long been considered the first-line therapy in symptomatic or cytopenic patients, it can lead to significant morbidity and mortality. Splenic irradiation is an option for patients who have a poor response to systemic therapy and/or are not surgical candidates. In this paper, we present a case report of a patient who received splenic radiotherapy for symptomatic splenomegaly.
Methods: An 85-year-old Caucasian man with a 4 year history of low-grade NHL presented with progressive pancytopenia, significant weight loss and symptomatic splenomegaly (abdominal discomfort, sense of fullness and limitation of mobility due to spleen size). The patient refused splenectomy and, in December 2017, was referred to palliative splenic radiotherapy. He was initially treated with five fractions of one Grey (Gy) in order to evaluate clinical and haematology response. After that, 1.5 Gy daily, 5 days a week for 3 weeks. 3D conformal radiotherapy, multiple fields and mixed energy (6 and 15 Mv) were used.
Results: Radiotherapy allowed significant splenic reduction to almost half the size, resolving abdominal discomfort and improving quality of life. There was no decline of haemoglobin, leukocytes and platelet counts; in fact, there was a marginal increase.
Conclusion: Palliative splenic irradiation was well tolerated confirming that it is a safe treatment option for palliation of symptomatic splenomegaly. Thereby, splenic irradiation should be strongly considered in the management of symptomatic splenomegaly, for selected patients who are refractory to or unsuitable for other options or when the patient refuses other treatments.
Keywords: radiotherapy, splenomegaly, lymphoma, palliative
Copyright: © the authors; licensee ecancermedicalscience. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/3.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
Published: 13/12/2018; Received: 27/10/2018
Introduction
Non-Hodgkin lymphoma (NHL) is a heterogeneous group of lymphoid malignancies, which develop in the lymph nodes or in other lymph tissue such as the spleen [1]. Splenic marginal zone lymphoma (SMZL), an uncommon subtype of NHL, is usually present with symptomatic splenomegaly [2].
Splenomegaly is a common debilitating complication in lymphoproliferative disorders that may present with abdominal pain, epigastric discomfort, impaired mobility, early satiety and fatigue, and it is often associated with hypersplenism [3, 4]. This condition is caused by an increased demand for splenic function, infiltrative diseases of the spleen and splenic congestion due to portal hypertension and is characterised by splenomegaly, cytopenias, normal/hyperplastic bone marrow and potential response to splenectomy [5].
Some patients may have no criteria for initiating treatment and can be considered for watch and wait. For patients with treatment indication, available therapeutic options are splenectomy, chemotherapy, rituximab alone, rituximab–chemotherapy combination or radiotherapy [6].
Although splenectomy has long been considered the first-line therapy in symptomatic or cytopenic patients, it can lead to significant morbidity and mortality [2, 4].
Splenic irradiation may be an option for patients who have a poor response to systemic therapy and/or are not surgical candidates due to advanced age or poor performance status [7].
In this paper, we present a case report of a patient who received splenic radiotherapy for symptomatic splenomegaly.
Methods
Case report
An 85-year-old Caucasian man, with a medical history of deep venous thrombosis, cerebrovascular disease (currently without anticoagulation) and a 4 year history of low-grade NHL (atypical SMZL), presented with progressive pancytopenia, significant weight loss and symptomatic splenomegaly (abdominal discomfort, sense of fullness and limitation of mobility due to spleen size). He was human immunodeficiency virus negative, hepatitis B (HB) antigen negative, anti-HBs antibody positive and hepatitis C virus negative. The patient refused splenectomy and, in December 2017, was referred to palliative splenic radiotherapy.
Treatment planning
The patient was positioned in a comfortable and reproducible supine position with the arms up using a thorax board, Vac-Lok coach and knee edge.
Simulation was performed using a noncontrast-enhanced computerised tomography (CT), in which images were acquired for every 2-mm CT slice thickness. Four CT scans were used in order to adapt weekly spleen changes and to better protect organs at risk.
At the treatment bed, image verification was done using two setup fields admitting a maximum deviation of 3 mm.
Planning target volume was the spleen with a 1-cm margin, considering setup uncertainties and internal organ movements
3D conformal radiotherapy, multiple fields and mixed energy (6 and 15 Mv) was used. We started with five fractions of one Gy in order to evaluate the patient’s clinical and haematology response. Then, we used 1.5 Gy daily, 5 days a week for 3 weeks. Neither premedication nor concomitant therapy was administered.
The left kidney was the most exposed organ, even though we did not cross international recommendations doses.
Results
Figure 1 reports the evolution of haemoglobin, leukocytes and platelet counts before, during and after the treatment.
Table 1 shows the evolution of spleen volume before, during and after the treatment.

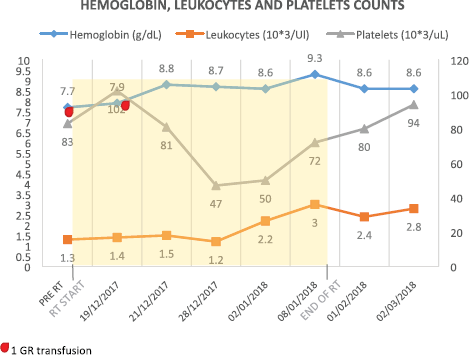

Figure 1. Haemoglobin, leukocytes and platelet counts.

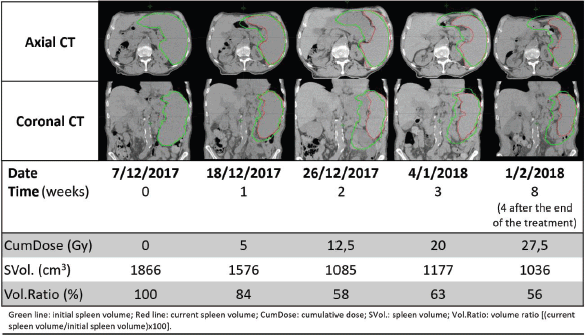

Table 1. Spleen volume before, during and after the treatment.
The treatment was very well tolerated with no adverse events reported.
The patient was observed at 3 and 8 weeks after completing treatment, presenting symptomatic improvement with less abdominal discomfort and restored mobility.
Nine months after the end of spleen irradiation, the patient maintains a satisfactory level of mobility without recurrence of pain and abdominal discomfort. Haemoglobin, leukocytes and platelets counts remain stable. At the time of this publication (December 2018), the patient no more needed re-irradiation.
Discussion
SMZL is a rare and indolent B-cell NHL that usually presents with symptomatic splenomegaly and lymphocytosis. Sometimes, it is associated with chronic antigenic stimulation by hepatitis C virus. Diagnosis is based on the examination of bone marrow (lymphocyte morphology, immunophenotype, cytogenetic analysis, bone marrow histology) and spleen histology, when available [2].
SMZL is not curable and can be associated with long survival. Asymptomatic patients without splenomegaly, anaemia, thrombocytopenia or leukopenia can only be observed. When patients became symptomatic due to splenomegaly and/or cytopenias, therapy is required. The management of symptomatic patients is determined by several criteria: patient’s performance status [Eastern Cooperative Oncology Group or Karnofsky performance scales]; serology for hepatitis C virus, extent of involvement and patient´s preference. Therapeutic options include systemic therapy (antiviral therapy, if hepatitis C infection; single-agent rituximab; rituximab plus chemotherapy) and local therapies (splenectomy or radiotherapy for patients not candidates or refuse surgery). Although splenectomy remains the treatment of choice for symptomatic splenomegaly, there are patients not eligible for this procedure due to complications such as major bleeding, pulmonary complications, thrombosis and infections [8].
Treatment with chemotherapy, on the other hand, has been associated with considerable morbidity and mortality and less efficacy in elderly patients [9]. Monotherapy with rituximab is well tolerated and induces high response rates in SMZL, but it is especially effective for splenectomised patients and can induce Hepatitis reactivation on HBsAg-negative/anti-HBc-positive patients although with a very low risk in monotherapy [10, 11].
Splenic irradiation, a noninvasive technique, is an effective palliative treatment in patients who are refractory to or unsuitable for surgery or chemotherapy or when the patient refuses other options. It can also increase the response rates to immune or immune-chemotherapy with Rituximab if the patient needs further treatments. In addition, it seems to be safe to repeat irradiation in patients who do not achieve a durable response.
There are several cases described in the literature that show the effectiveness of radiation therapy for the palliative management of symptomatic splenomegaly. Paulino et al described 25 patients with lymphoproliferative or myeloproliferative disorders who received splenic irradiation for palliation of splenomegaly and splenic pain with splenomegaly and splenic pain decreased in 60% and 91% of patients, respectively [12]. Weinman et al’s review showed that spleen irradiation allowed relief of pain and abdominal discomfort with a response rate of 50%–90% [13]. Similar results were described by Krizetal, reporting pain relief in 74% of the 122 patients analysed [14]. Carolina de la Pinta et al presented five patients with symptomatic splenomegaly treated with low doses of radiation (median radiation doses 4.85 Gy; range 2.5–10) and concluded that this approach was effective with significant improvement of splenic pain and abdominal discomfort with a low rate of side effects [15].
Although lower doses can be sufficient for palliation, higher doses are also suggested in the literature (maximum doses of 24 Gy to 32 Gy) [16–19]. In this particular case, we used 27 Gy in order to achieve better hematologic parameters. We were expecting a better hematologic response.
In this case report, radiotherapy allowed significant splenic reduction to almost half the size, resolving abdominal discomfort and improving quality of life. At the end of the treatment, there was no decline of haemoglobin, leukocytes and platelet counts; in fact, there was a marginal increase. Palliative splenic irradiation was well tolerated, confirming that it is a safe treatment option for palliation of symptomatic splenomegaly [3, 20].
Conclusion
Symptomatic splenomegaly can be safely treated with radiotherapy. Low doses of radiotherapy allow relief of abdominal pain and sense of fullness and recovery of count blood cells improving quality of life. Therefore, splenic irradiation should be strongly considered in the management of symptomatic splenomegaly, for selected patients who are refractory to or unsuitable for other options or when the patient refuses other treatments.
List of abbreviations
CT Computerised Tomography
Gy Grey
HB Hepatitis B
NHL Non-Hodgkin Lymphoma
SMZL Splenic Marginal Zone Lymphoma
Conflicts of interest
The authors declare no conflicts of interest.
Ethical approval
All procedures performed respected informed consent and confidentiality.
Financial disclosure
No financial disclosure.
Acknowledgment
The authors would like to thank Julio Teixeira Radiotherapy Department.
References
1. Zelenetz A, Gordon L, and Abramson J (2017) NCCN clinical practice guidelines in oncology (NCCN Guidelines) B-Cell Lymphoma
2. Kahl B, Nowakowski GS, and Yang D (2016) Non-Hodgkin lymphoma American Society of Hematology Self-Assessment Program 573–615
3. Lavrenkov K, Krepel-Volsky S, and Levi I, et al (2012) Low dose palliative radiotherapy for splenomegaly in hematologic disorders Leukemia and Lymphoma 53(3) 430–434 https://doi.org/10.3109/10428194.2011.614708
4. Zaorsky NG, Williams GR, and Barta SK, et al (2017) Splenic irradiation for splenomegaly: a systematic review Cancer Treat Rev 53 47–52 https://doi.org/10.1016/j.ctrv.2016.11.016 PMID: 28063304
5. Kasper D, Fauci A, and Hauser S, et al (2015) Harrison’s Principles of Internal Medicine 19th edn (New York: McGraw-Hill)
6. Dreyling M, Thieblemont C, and Gallamini A, et al (2013) ESMO Consensus conferences: guidelines on malignant lymphoma. Part 2: marginal zone lymphoma, mantle cell lymphoma, peripheral T-cell lymphoma Ann Oncol 24(4) 857–877 https://doi.org/10.1093/annonc/mds643 PMID: 23425945
7. Hansen EK and Roach M (2010) Handbook of Evidence-Based Radiation Oncology 2nd edn (New York: Springer)
8. Pata G, Damiani E, and Bartoli M, et al (2016) Peri-operative complications and hematologic improvement after first-line splenectomy for splenic marginal zone lymphoma Leukemia and Lymphoma 57(6) 1467–1470 https://doi.org/10.3109/10428194.2015.1092529
9. Orlandi E, Lazzarino M, and Brusamolino E, et al (1991) Non-Hodgkin’s lymphoma in the elderly: the impact of advanced age on therapeutic options and clinical results Haematologica 76(3) 204–208 PMID: 1743590
10. Else M, Marín-Niebla A, and la Cruz F, et al (2012) Rituximab, used alone or in combination, is superior to other treatment modalities in splenic marginal zone lymphoma Br J Haematol 159(3) 322–328 https://doi.org/10.1111/bjh.12036 PMID: 23016878
11. Villadolid J, LaPlant KD, and Markham MJ, et al (2010) Hepatitis B reactivation and rituximab in the oncology practice Oncologist 15(10) 1113–1121 https://doi.org/10.1634/theoncologist.2010-0106 PMID: 20930099 PMCID: 3227895
12. Paulino AC and Reddy SP (1996) Splenic irradiation in the palliation of patients with lymphoproliferative and myeloproliferative disorders Am J Hosp Palliat Care 13(6) 32–35 https://doi.org/10.1177/104990919601300613 PMID: 8945101
13. Weinmann M, Becker G, and Einsele H, et al (2001) Clinical indications and biological mechanisms of splenic irradiation in chronic leukaemias and myeloproliferative disorders Radiother Oncol 58(3) 235–246 https://doi.org/10.1016/S0167-8140(00)00316-9 PMID: 11230883
14. Kriz J, Micke O, and Bruns F, et al (2011) Radiotherapy of splenomegaly: a palliative treatment option for a benign phenomenon in malignant diseases Strahlenther Onkol 187(4) 221 https://doi.org/10.1007/s00066-011-2252-4 PMID: 21424304
15. de la Pinta C, Lizarbe EF, and Luis ÁM, et al (2017) Treatment of symptomatic splenomegaly with low doses of radiotherapy: Retrospective analysis and review of the literature Tech Innovat Patient Support Rad Oncol 3 23–29 https://doi.org/10.1016/j.tipsro.2017.08.002
16. Aabo K and Walbom-Jorgensen S (1985) Spleen irradiation in chronic lymphocytic leukemia (CLL): palliation in patients unfit for splenectomy Am J Hematol 19(2) 177–180 https://doi.org/10.1002/ajh.2830190210 PMID: 2408466
17. Sciascia R, Mazza P, and Tondi L (1988) Splenic irradiation in the treatment of idiopathic myelofibrosis. Retrospective study of 14 cases Radiol Med 76(1–2) 87–90 PMID: 3399713
18. Guiney M, Liew K, and Quong G, et al (1989) A study of splenic irradiation in chronic lymphocytic leukemia Int J Radiat Oncol Biol Phys 16(1) 225–229 https://doi.org/10.1016/0360-3016(89)90035-7 PMID: 2912945
19. Bouabdallah R, Coso D, and Gonzague-Casabianca L, et al (2000) Safety and efficacy of splenic irradiation in the treatment of patients with idiopathic myelofibrosis: a report on 15 patients Leuk Res 24(6) 491–495 https://doi.org/10.1016/S0145-2126(00)00018-7 PMID: 10781683
20. Jyothirmayi R and Coltart S (2005) An audit of the indications for and techniques of palliative splenic radiotherapy in the UK Clin Oncol 17(3) 192–194 https://doi.org/10.1016/j.clon.2004.12.003
