Prognostic value of a patient-reported functional score versus physician-reported Karnofsky Performance Status Score in brain metastases
Jai Prakash Agarwal1, Santam Chakraborty1, Sarbani Ghosh Laskar1, Naveen Mummudi1, Vijay M Patil2, Kumar Prabhash2, Vanita Noronha2, Nilendu Purandare3, Amit Joshi2, Sandeep Tandon4, Jitendra Arora1 and Rupali Badhe1
1Department of Radiation Oncology, Tata Memorial Hospital, Parel, Mumbai 400012, India
2Department of Medical Oncology, Tata Memorial Hospital, Parel, Mumbai 400012, India
3Department of Radiology, Tata Memorial Hospital, Parel, Mumbai 400012, India
4Department of Pulmonary Medicine, Tata Memorial Hospital, Parel, Mumbai 400012, India
Correspondence to: Dr Santam Chakraborty. Email: drsantam@gmail.com
Abstract
Introduction: Our aim was to investigate the added prognostic value of a patient-reported functional outcome score over Karnofsky Performance Status (KPS) in patients with non-small-cell lung cancers (NSCLC) with brain metastases.
Materials and methods: The baseline data are from a prospective cohort study involving 140 consecutive patients presenting at our institute. A patient reported performance status (PRPS) was obtained by summing the physical- and role-functioning scale scores of the EORTC QLQ C30 questionnaire. Nested cox proportional hazards models predicting survival were developed including both KPS and PRPS (full model), KPS only (KPS Model), and PRPS only (PRPS model). The incremental value of the addition of KPS or PRPS was ascertained using the likelihood ratio test, model adequacy index and integrated discrimination Improvement (IDI).
Results: PRPS was an independent and statistically significant prognostic factor and had only a moderate degree of agreement with KPS. All models showed nearly the same discrimination and calibration accuracy, but the likelihood ratio test comparing the full model to the KPS model was significant (L.R. Chi2 = 5.34, p = 0.02). Model adequacy index for the KPS model was 85% versus 95% for the PRPS model. IDI when comparing the KPS model to the full model was 0.0279, while it was 0.008 for the PRPS model versus the Full model.
Conclusions: Use of patient-reported functional outcomes like PRPS can provide the same prognostic information as KPS in patients of NSCLC with brain metastases.
Highlights
• Patient-reported functional status (PRPS) has a moderate degree of agreement with KPS.
• PRPS is an independent and significant predictor of survival in brain metastases.
• PRPS can replace KPS without loss of prognostic information.
Keywords: patient-reported outcomes, quality of life, functional scores, Karnofsky performance status, performance status, brain metastases, non-small-cell lung cancer
Copyright: © the authors; licensee ecancermedicalscience. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/3.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
Published: 10/11/2017; Received: 30/05/2017
Introduction
Performance status (PS) has been defined by the National Cancer Institute as ‘a measure of how well a patient is able to perform ordinary tasks and carry out daily activities’ [38]. The baseline PS of patients is one of the most important factors influencing their prognosis [2]. In the context of patients with brain metastases, the baseline PS is the key prognostic factor determining survival [13, 32–34]. This is exemplified by the fact that the baseline PS is included in the diagnosis-specific graded prognostic assessment (DS-GPA) score across different primary sites [33]. The physician-reported performance status is usually reported in the form of a summary score, and the two most commonly used scales are the Karnofsky performance status (KPS) [18], and the Eastern Cooperative Oncology Group Performance Status (ECOG-PS) scales [23]. Of these, KPS has been used in successive trials in brain metastases patients and is also used for validated prognostic indices like the GPA [33].
PS is usually estimated by health care professionals during the course of a routine health care visit. However, estimation of PS using the KPS or ECOG scales suffers from interobserver variation due to the subjective nature [7, 28, 31, 36] of the assessment scale. Further, given the subjective nature of assessment, it is not surprising that there is only a moderate degree of agreement between the PS score as assessed by the patient themselves and the physician [3, 5, 6, 17, 22].
It is well known that physicians and other health care workers’ judgement about subjective measures, like patient’s pain, quality of life, anxiety, depression, etc., is different from that of the patients themselves [30]. Given the inherent subjectivity in PS assessment and the previous reports of disagreement between physician and patient assessed PS, it is reasonable to question if the use of patient-reported functional status would allow us to get better prognostic estimates as compared to KPS.
Functional status can be ascertained through the functional domains of Health-Related Quality of Life (HR-QOL) instruments like the European Organisation for Research and Treatment of Cancer (EORTC) Quality of Life Questionnaire C-30 (QLQ-C30) [20]. This questionnaire comprises of 30 items, of which 15 items contribute to five functional scales looking at physical, role, emotional, cognitive and social functioning.
Between June 2012 to April 2015 we enrolled 140 consecutive patients with non-small-cell lung cancer (NSCLC) with brain metastases planned for palliative whole brain radiotherapy in a prospective cohort study (CTRI Number: CTRI/2013/01/003299). As a part of this study, patients received usual care and underwent quality of life assessment using the EORTC QLQ C30. The objective of the current study is to ascertain if the patient reported functional status as ascertained using the EORTC QLQ C30 provides additional prognostic information over and above KPS.
Materials and methods
One hundred and forty (140) consecutive patients with NSCLC with brain metastases were enrolled in this IRB approved prospective cohort study after written informed consent (Clinical Trial Registry of India number: CTRI/2013/01/003299). The study was conducted between June 2012 to April 2015 at a tertiary cancer centre in India. The quality of life (QOL) assessments and mini-mental state examination (MMSE) [11] was performed at baseline and information regarding traditional prognostic variables was recorded. QOL was assessed using the EORTC QLQ C-30 [1], LC-13 [4], and BN-20 questionnaires [21]. All questionnaires were self-reported. All patients underwent palliative whole brain radiotherapy (WBRT) to a dose of 20 Gy in five fractions over one week. Similar QOL and MMSE assessments were also performed at subsequent follow-up. Data regarding baseline quality of life scores were available for all patients.
For the purpose of this study, we calculated the baseline values of the functional scales of the EORTC QLQ C30 questionnaire. The calculation was done as per the methodology suggested by the EORTC QLQ scoring manual [10]. This involved calculation of the raw score for each scale by obtaining the average score for all the items in the scale. This was followed by linear transformation of the raw score to obtain a score ranging between 0 and 100. For each functional scale, increasing scores represented a better functioning. As KPS primarily focusses on the physical functioning, we chose the physical- and role-functioning scales for constructing a Patient-Reported Performance Scale (PRPS). The seven items which are a part of this PRPS are shown in Table 1.
The scale to which each item belongs is also indicated. Items taken from the EORTC QLQ C30 questionnaire.
The PRPS was the average of the physical and role functioning scale scores. No further score transformation was done.
PRPS = (Physical Functioning Scale Score Role Functioning Scale Score)/2 .... Equation 1.
The above calculation methodology was adopted, as it retained the original scale definition as well as the original score calculation method as defined by the EORTC. However, we also used another method of calculation where the PRPS was derived from the seven questions directly using the formulae:
PRPS Raw = (Q1 Q2 .... Q7)/7 .......(2)
PRPS = [1 - ((PRPS Raw-1)/3)]x100 .... (3)
However, the PRPS calculated using this alternate methodology did not alter the essential results in the study (results not shown).
Prior to analysing the utility of PRPS in predicting prognosis, we ascertained the degree of agreement between the PRPS and the KPS. Traditional measures to define agreement like the weighted kappa score are not useful in this setting as the two scales are different. Hence, we used polychoric correlation as a measure of agreement. Polychoric correlation allows estimation of agreement between two ordinal scales measuring an underlying latent construct which is assumed to be continuous [12]. After quantifying the degree of agreement between the KPS and PRPS, we ascertained the impact of the addition of PRPS as a prognostic factor. In order to ascertain the successive nested, cox proportional hazards models were fit. These models were as follows:
1. Full model: age, gender (male/female), number of brain metastases (1–3 or 3 or more), extracranial disease (present/absent), epidermal growth factor receptor (EGFR) mutation (mutated/wild type/not tested), KPS and PRPS.
2. KPS Model: Same as model 1 except PRPS was excluded.
3. PRPS Model: Same as model 1 except KPS was excluded.

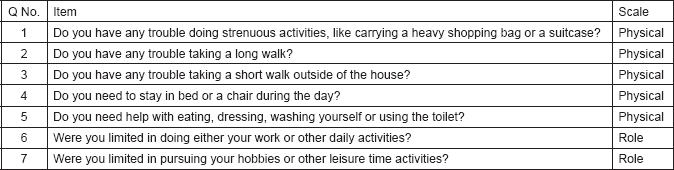

Table 1. Items taken from the EORTC QLQ C30 used for calculating the PRPS.
Proportional hazards and linearity assumptions were checked for all models. In order to check for nonlinearity, continuous variables in the model (age, PRPS and KPS) were expanded using restricted cubic splines with four knots and ANOVA test was used to determine if linearity assumptions needed to be relaxed. The likelihood ratio test was used to determine whether the addition of PRPS or KPS resulted in a better model fit, with a p value of < 0.05 considered as statistically significant. Thus, the likelihood ratio test when comparing KPS model to full model, estimated if the inclusion of PRPS resulted in significantly better fit as compared to the KPS model. Similarly, the likelihood ratio test when comparing PRPS model to the full model, estimated the benefit of the addition of KPS to the PRPS model. A model adequacy index was also calculated, which is the ratio of the likelihood ratio of the subset model to that of the full model [16]. An adequacy index of 1 indicates that the prognostic information in the subset model is same as that of the full model, or in other words inclusion of the additional covariate is not needed.
Model discrimination was checked using the Harrell’s concordance index [16], time-dependent receiver operating curves (ROC) and the area under curve (AUC) calculated at various time points. The ROC estimates were derived using cumulative case/dynamic control method based on inverse probability-of-censoring weights as proposed by Uno et al [37]). Risk assessment plots were generated and Integrated Discrimination Index (IDI) were calculated using the method proposed by Pickering et al [26] using mortality prediction estimates at six months. Ninety-five per cent confidence intervals of the IDI were also calculated using 1000 bootstraps. Model calibration at six months (182.5 days) was checked using calibration plots. Model discrimination and calibration statistics were internally validated using bootstrapping (1000 bootstrap samples). Full details of the analytic methodology and accompanying analysis with comments are available in Appendix.
All analyses were conducted using R (version 3.3.3, Vienna, Austria) [27] in RStudio IDE (version 1.0.136, RStudio, Inc., Boston, MA, USA). Packages used for the analysis were polycor, rms, pec, rap, survAUC and survminer (cited in Appendix).
Results
Patient characteristics
The demographic and disease-related characteristics of the patient population are described in Table 2. The database was closed for analysis in August 2016, by which time, 111 patients (79.3%) had died. The median overall survival calculated from the date of completion of WBRT was 166 days (95% CI: 108–242 days). All deaths were related to disease progression. The 30 day, 60 day and 120 day survivals were 92%, 79% and 55% (Figure 1). Assuming a rule of thumb of 10 events per variables, 111 events gave us sufficient power to examine 11 variables in a prognostic model [24, 25].
Figures in parentheses represent the percentage of patients in the given category for categorical variables and interquartile range (IQR) for continuous variables.
EGFR: epidermal growth factor receptor; IQR: interquartile range; KPS: Karnofsky Performance Status; MMSE: Mini-mental Status Examination Score Category; RPA: recursive partitioning analysis,
Agreement between PRPS and KPS
The polychoric correlation coefficient between KPS and PRPS was 0.46 (standard error: 0.07) indicating that only a modest degree of agreement existed between KPS and PRPS. The test for bivariate normality was not significant (Chi-square = 159.8, df = 229, p = 0.9998) indicating that the assumptions of polychoric correlation were not violated. As can be seen in Figure 2, there is a wide variability between the PRPS and KPS. The important prognostic variables which have been included in the model did not seem to influence the correlation between PRPS and KPS (Figure 2 and Appendix). Patients with a poorer cognitive function in general had a better agreement between the KPS and PRPS scores, though the degree of agreement was still modest with the highest polychoric coefficient of 0.67 for patients with poor cognitive function as defined by the MMSE test (Appendix).

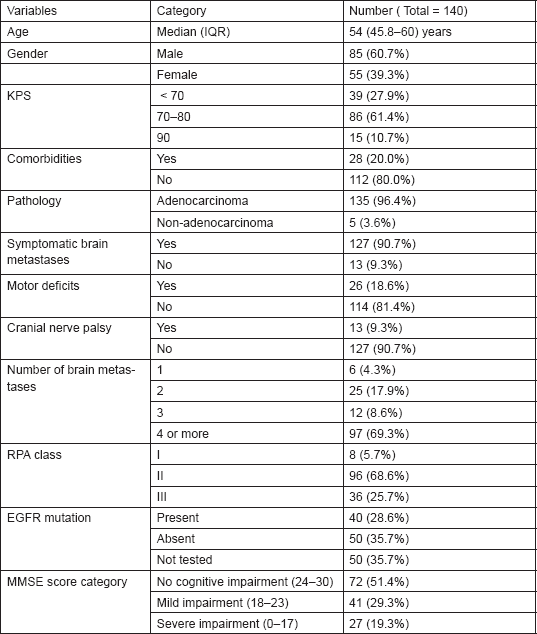

Table 2. Basic demographic- and disease-related characteristics of the entire population.

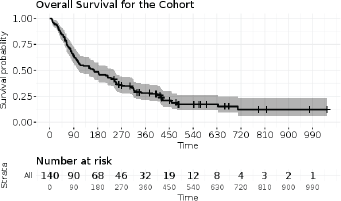

Figure 1. Kaplan–Meier survival curve for the entire population with 95% confidence intervals of the estimate. The number at risk are represented at each time interval are represented below the curve.
Figure 2. Scatter plots of PRPS score versus KPS for the patients in the study. Points have been color coded as per the important prognostic variables (age, sex, number of lesions, the presence of extracranial disease, EGFR status) and the RPA category. Lines represent linear regression fits and shaded bands the 95% confidence intervals of the same. In order to demonstrate the effect of age, we have categorised the age into two categories, > 65 years and ≤ 65 years. Lesions = Number of brain lesions (1-3 vs. > 3), ECM: extracranial disease, EGFR: epidermal growth factor receptor; RPA: recursive partitioning analysis class. Individual subset correlation coefficients can be seen in the Appendix.
Comparative evaluation of prognostic models
The three pre-specified models are presented in Table 3 and as can be seen, in the full model as well as the PRPS model, PRPS was found to be a significant predictor of survival. While KPS was a significant predictor of survival in the KPS model, it was not significant in the full model when PRPS was also included. Model assumptions were checked as shown in Appendix.
Contrasts have been depicted for continuous variables for a better understanding of the hazard ratios. Statistically significant variables in the model are indicated with*. p values < 0.05 is taken as significant and all coefficients have been rounded to two decimal places.
EGFR: epidermal growth factor receptor; KPS: Karnofsky performance status; LR Chi2: likelihood ratio chi-square value; PRPS: patient-reported performance scale. See Appendix for the graphical representation and the summary statistics for the individual models.
The likelihood ratio (LR Chi2) test comparing the full model and the KPS model was significant indicating that addition of PRPS improved the goodness to fit (LR Chi2 = 5.34, p = 0.02*). However, the likelihood test comparing the full model and the PRPS model was not significant, indicating that addition of KPS did not improve the goodness to fit significantly (LR Chi2 = 1.77, p = 0.18) when PRPS was already present in the model. The model adequacy index for the PRPS model was 95.2%, while for the KPS model it was 85.6%. In other words, the PRPS model explained about 95% of the predictive information contained in the full model, while the KPS model could explain only 85% of the same.
The Harrell’s C-Statistic were 0.69, 0.68, and 0.68 for the full model, KPS model, and PRPS model respectively. Optimism corrected values (using 1000 Bootstrap samples) of the C-statistic were 0.66, 0.65, and 0.65, respectively. The time-dependent cumulative case/dynamic control-integrated AUC values for the three models were 0.72, 0.72, and 0.71 for the full, KPS and PRPS models, respectively. Figure 3 shows that actual time-dependent AUC values for the three models at different time points. As can be seen, the KPS model has slightly better discrimination ability at shorter follow-up times, while the converse is true about the PRPS model. However, on the whole, the discriminative ability of the PRPS model is nearly similar to that of the full model at all time points.

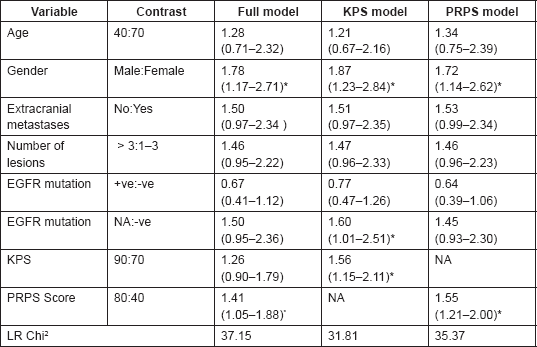

Table 3. Showing the model coefficients expressed as hazard ratios with 95% confidence intervals of the same shown inside parentheses.
Figure 3. Line plots showing the time-dependent cumulative case/dynamic control ROC values for the three models plotted from times 30 days to 300 days.

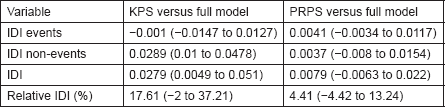

The findings were confirmed in the risk assessment plots (RAP) and the values of integrated discrimination improvement (IDI) (Figure 4 and Appendix). While the addition of PRPS to a model with KPS resulted in a slight improvement in the discrimination between non-events, there was no difference in discrimination for patients with events. On the other hand, addition to KPS to a model with PRPS does not result in any discernible improvement in the predictive ability for either patients with or without events.

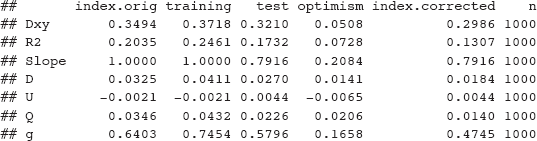

Bootstrap optimism–corrected calibration plots of the three models showed a good fit with mean absolute errors and 0.9 quantile of the absolute error being 0.035 (0.07), 0.036 (0.06), and 0.037 (0.08) for the full model, KPS model, and PRPS model, respectively. Model calibration plots are shown in the Appendix.
Discussion
As a construct, performance status (PS) has both a subjective and an objective domain, but the current methods of assessment in the clinic use mainly subjective measures [19]. It is, therefore, surprising that physicians continue to rate the patient’s performance status, while other subjective issues, like pain and quality of life, are usually patient reported. The EORTC QLQ C30 has seven questions that deal with the physical and role function, and these questions are more specific as compared to traditional PS assessment methods like KPS or ECOG scales. Hence, intraobserver variability is likely to be less as compared to traditional PS assessment as the subjectivity arising out of physician assessment would be eliminated [35].
Guzelant et al have previously shown that of all the scales in the EORTC QLQ C30 questionnaire, physical functioning and role functioning scales have the strongest correlation with KPS [15]. In the current study, we demonstrate that a composite score of the physical and role functioning score (PRPS) provides valid prognostic information over and above KPS and may be used instead of KPS with little loss in model predictiveness and accuracy.
Previous studies evaluating physician- and patient-reported performance scales have shown significant disagreement between the two [3, 5, 6, 17, 22]. As shown in this study, there is only a modest agreement between patient-reported functional scores and physician-reported PS. In addition to inter-observer variability in rating PS [3], it is known assessment of PS is influenced by physician bias. For example, Broderick et al have demonstrated that younger patients are generally assigned more favourable PS scores by physicians [7]. This is despite the fact that PS does not correlate well with comorbidity and the disease stage [9].
While the current study demonstrates that PRPS can substitute for KPS without loss of prognostic information, results from previous studies have been conflicting. For example, Ando et al have reported that oncologist rated PS scores best fit the observed survival [3]. However, unlike the current study, the prognostic model comparisons were not done based on nested models and robust internal validation or calibration was not performed.

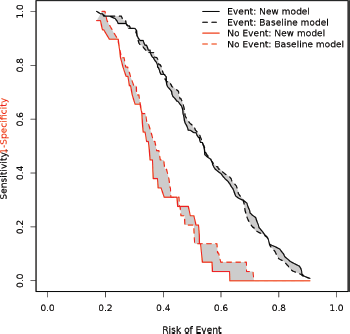

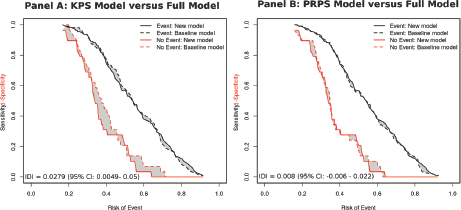

Figure 4. Risk assessment plots of the KPS model versus the full model (Panel A) and the PRPS model versus the full model (Panel B). IDI: integrated discrimination improvement. 95% CI: 95% confidence intervals of the estimate. A higher IDI indicates a better model predictive performance. Plots drawn from mortality estimates at six months.
One of the concerns regarding the use of patient performance status has been that patients tend to rate their own performance status poorly [3, 8, 22, 29]. The reason behind this are poorly understood but may be related to depression [17] or a subconscious desire to seek help [3]. The use of patient-reported PS can result in almost half the patients excluding themselves from clinical trials where PS is a part of the inclusion criteria [8]. The use of PRPS as used in the present study can be a way around, wherein the patient-reported scores are used for determining prognosis, while physician-determined PS is used to determine clinical trial eligibility. Further use of specific questions as used in the EORTC QLQ C30 may reduce the possibility of patients rating their performance status artificially lower [35].
As Suh et al. have reported composite PS derived from a patient reported review of systems, can be obtained in a longitudinal fashion in the clinic and longitudinal changes in this influence prognosis [35]. Further, unlike the findings reported by Suh et al, we found that baseline PRPS was a significant and independent predictor of survival [35].
Our current study has several strengths in this regard. It is prospectively conducted in a cohort of patients with a single disease site. Consecutive patients were recruited to minimise selection bias. As all patients received the same radiotherapy treatment variability was also minimised which may have been a factor in previous studies [3, 5]. Follow-up was also complete and adequate. The final event (death) was observed in more than 80% of the patients. Baseline patient-reported QOL data were complete as was information regarding other prognostic variables. Further, all these information was collected in a standardised proforma, which further minimised interobserver variability. Hence, this data set was ideal to compare and contrast prognostic models that employ baseline predictive factors. The findings from the study lend further credence to the observation that patient-reported outcome measures are better predictors of survival as compared to traditional PS [14].
The limitations of the study include the fact that it was conducted in a single centre and most patients had an adenocarcinoma histology. Hence, applicability of this model to patients with other histologies and brain metastases from other sites may be limited. Nonetheless, performance status is a part of all diagnosis-specific GPA indices [33], which is an indicator of its importance in patients with brain metastases irrespective of the site of origin.
Further all patients in this study had received whole brain radiotherapy. Patients who received stereotactic radiotherapy for brain metastases, usually have a lower intracranial disease burden and hence likely to have better performance status. However, even in this setting, a score like the PRPS is likely to discriminate better between subtle grades of functional impairments as compared to the ECOG and KPS scales. As shown in the appendix, patients with better MMSE scores had a poorer correlation between the KPS and PRPS scale.
Patients’ assessment of their own HRQoL assessments is influenced by several factors like comorbidities, cognitive function, and response bias. However, the same issues affect assessment of a subjective domain like functional status when done by other observers. Eliminating other observers from the assessment process, has to potential to reduce inter-observer bias as the patient directly reports his/her functional status. In this regard, the finding that patients with poorer cognitive function had better agreement between the PRPS and the KPS score provides some insights. It is likely that the functional deficits produced in the presence of major cognitive deficits would have caught the attention of the treating physician resulting in better agreement in grading the functional deficits. In patients with better cognitive function (as assessed by the MMSE), the functional deficits would have been subtle and hence would have either not been noted by the physician or graded adequately using KPS.
Conclusion
Our study shows that patient functional score derived from the EORTC QLQ C30 (PRPS) was both a statistically significant and an independent predictor of mortality in patients with brain metastases. It also gave the same prognostic information as KPS in our prognostic model. There was significant disagreement between PRPS and KPS, although the same were measured at the same time point. The results of this study highlight the importance of patient reported outcome measures in patients with brain metastases and should spur further research in the use of patient-reported functional outcomes in this population.
Funding
The project was supported by an intramural grant from Tata Memorial Hospital.
Acknowledgments
The authors acknowledge the support received by Tata Memorial Center, which provided the intramural grant for funding this project.
Conflicts of interest
None of the authors have any conflicts of interest to declare.
References
1. Aaronson NK, Ahmedzai S, and Bergman B, et al (1993) The European Organization for Research and Treatment of Cancer QLQ-C30: a quality-of-life instrument for use in international clinical trials in oncology J Natl Cancer Inst 85, 365–376 https://doi.org/10.1093/jnci/85.5.365 PMID: 8433390
2. Albain KS, Crowley JJ, and LeBlanc Met al (1991) Survival determinants in extensive-stage non-small-cell lung cancer: the Southwest Oncology Group experience J Clin Oncol 9 1618–1626 https://doi.org/10.1200/JCO.1991.9.9.1618 PMID: 1651993
3. Ando M, Ando Y, and Hasegawa Y, et al (2001) Prognostic value of performance status assessed by patients themselves, nurses, and oncologists in advanced non-small cell lung cancer Br J Cancer 85 1634–1639 https://doi.org/10.1054/bjoc.2001.2162 PMID: 11742480 PMCID: 2363970
4. Bergman B, Aaronson NK, and Ahmedzai S, et al (1994) The EORTC QLQ-LC13: a modular supplement to the EORTC Core Quality of Life Questionnaire (QLQ-C30) for use in lung cancer clinical trials. EORTC Study Group on Quality of Life Eur J Cancer 30A 635–642 https://doi.org/10.1016/0959-8049(94)90535-5 PMID: 8080679
5. Blagden SP, Charman SC, and Sharples LD, et al (2003) Performance status score: do patients and their oncologists agree? Br J Cancer 89 1022–1027 https://doi.org/10.1038/sj.bjc.6601231 PMID: 12966419 PMCID: 2376959
6. de Borja MT, Chow E, and Bovett G, et al (2004) The correlation among patients and health care professionals in assessing functional status using the Karnofsky and eastern cooperative oncology group performance status scales Support Cancer Ther 2 59–63 https://doi.org/10.3816/SCT.2004.n.024
7. Broderick JM, Hussey J, and Kennedy MJ et al (2014) Patients over 65years are assigned lower ECOG PS scores than younger patients, although objectively measured physical activity is no different J Geriatr Oncol 5 49–56 https://doi.org/10.1016/j.jgo.2013.07.010 PMID: 24484718
8. Dajczman E, Kasymjanova G, and Kreisman H, et al (2008). Should patient-rated performance status affect treatment decisions in advanced lung cancer? J Thorac Oncol 3 1133–1136 https://doi.org/10.1097/JTO.0b013e318186a272 PMID: 18827609
9. Extermann M, Overcash J, and Lyman GH, et al (1998) Comorbidity and functional status are independent in older cancer patients J Clin Oncol 16 1582–1587 https://doi.org/10.1200/JCO.1998.16.4.1582 PMID: 9552069
10. Fayers P, Aaronson K, and Bjordal M, et al (2001) EORTC QLQ-C30 Scoring Manual (Quality of Life Unit, European Organization for Research and Therapy in Cancer)
11. Folstein MF, Folstein SE, and McHugh PR (1975) “Mini-mental state” A practical method for grading the cognitive state of patients for the clinician J Psychiatr Res 12 189–198. https://doi.org/10.1016/0022-3956(75)90026-6 PMID: 1202204
12. Fox J (2016) polycor: Polychoric and Polyserial Correlations
13. Gaspar L, Scott C, Rotman M, et al (1997) Recursive partitioning analysis (RPA) of prognostic factors in three Radiation Therapy Oncology Group (RTOG) brain metastases trials Int J Radiat Oncol Biol Phys 37 745–751 https://doi.org/10.1016/S0360-3016(96)00619-0 PMID: 9128946
14. Gotay CC, Kawamoto CT, Bottomley A et al (2008) The prognostic significance of patient-reported outcomes in cancer clinical trials J Clin Oncol 26 1355–1363 https://doi.org/10.1200/JCO.2007.13.3439 PMID: 18227528
15. Guzelant A, Goksel T, Ozkok S, et al (2004) The European Organization for Research and Treatment of Cancer QLQ-C30: an examination into the cultural validity and reliability of the Turkish version of the EORTC QLQ-C30 Eur J Cancer Care 13 135–144 https://doi.org/10.1111/j.1365-2354.2003.00435.x
16. Harrell F (2015) Regression modelling strategies: with applications to linear models, logistic regression, and survival analysis (Tennesse: Springer)
17. Jeon HJ, Shim EJ, and Shin YW, et al (2007) Discrepancies in performance status scores as determined by cancer patients and oncologists: are they influenced by depression? Gen Hosp Psychiatry 29 555–561 https://doi.org/10.1016/j.genhosppsych.2007.08.007 PMID: 18022049
18. Karnofsky DA and Burchenal JH (1949) The clinical evaluation of chemotherapeutic agents in cancer. In Evaluation of Chemotherapeutic Agents, Macleod, CM, ed. (Columbia University Press), p. 196
19. Kelly CM and Shahrokni A (2016) Moving beyond Karnofsky and ECOG Performance Status Assessments with New Technologies J Oncol 2016 6186543 https://doi.org/10.1155/2016/6186543 PMID: 27066075 PMCID: 4811104
20. King MT (1996) The interpretation of scores from the EORTC quality of life questionnaire QLQ-C30 Qual Life Res 5, 555–567 https://doi.org/10.1007/BF00439229 PMID: 8993101
21. Leung A, Lien K, and Zeng L, et al (2011) The EORTC QLQ-BN20 for assessment of quality of life in patients receiving treatment or prophylaxis for brain metastases: a literature review Expert Rev Pharmacoecon Outcomes Res 11 693–700 https://doi.org/10.1586/erp.11.66 PMID: 22098285
22. Malalasekera A, Tan CSY, and Phan V, et al (2016) Eastern Cooperative Oncology Group score: agreement between non-small-cell lung cancer patients and their oncologists and clinical implications Cancer Treatment Communications 5, 17–21 https://doi.org/10.1016/j.ctrc.2015.11.009
23. Oken MM, Creech RH, andTormey DC, et al (1982) Toxicity and response criteria of the Eastern Cooperative Oncology Group Am J Clin Oncol 5 649–655 https://doi.org/10.1097/00000421-198212000-00014 PMID: 7165009
24. Peduzzi P, Concato J, and Feinstein AR et al (1995) Importance of events per independent variable in proportional hazards regression analysis II Accuracy and precision of regression estimates J Clin Epidemiol 48 1503–1510 https://doi.org/10.1016/0895-4356(95)00048-8 PMID: 8543964
25. Peduzzi P, Concato J, and Kemper E, et al (1996) A simulation study of the number of events per variable in logistic regression analysis J Clin Epidemiol 49 1373–1379 https://doi.org/10.1016/S0895-4356(96)00236-3 PMID: 8970487
26. Pickering JW and Endre ZH (2012) New metrics for assessing diagnostic potential of candidate biomarkers Clin J Am Soc Nephrol 7 1355–1364 https://doi.org/10.2215/CJN.09590911 PMID: 22679181
27. R Core Team (2017) R: a language and environment for statistical computing (Vienna, Austria: R Foundation for Statistical Computing).
28. Roila F, Lupattelli M, and Sassi M, et al (1991) Intra and interobserver variability in cancer patients’ performance status assessed according to Karnofsky and ECOG scales Ann Oncol 2 437–439 https://doi.org/10.1093/oxfordjournals.annonc.a057981 PMID: 1768630
29. Schnadig ID, Fromme EK, and Loprinzi CL, et al (2008) Patient-physician disagreement regarding performance status is associated with worse survivorship in patients with advanced cancer Cancer 113 2205–2214 https://doi.org/10.1002/cncr.23856 PMID: 18780322 PMCID: 3580230
30. Slevin ML, Plant H, and Lynch D, et al (1988) Who should measure quality of life, the doctor or the patient? Br J Cancer 57 109–112. https://doi.org/10.1038/bjc.1988.20 PMID: 3348942 PMCID: 2246701
31. Sørensen JB, Klee M, and Palshof T et al (1993) Performance status assessment in cancer patients. An inter-observer variability study Br J Cancer 67 773–775 https://doi.org/10.1038/bjc.1993.140 PMID: 8471434 PMCID: 1968363
32. Sperduto PW, Berkey B, and Gaspar LE, et al (2008) A new prognostic index and comparison to three other indices for patients with brain metastases: an analysis of 1,960 patients in the RTOG database Int J Radiat Oncol Biol Phys 70 510–514 https://doi.org/10.1016/j.ijrobp.2007.06.074
33. Sperduto PW, Chao ST, and Sneed PK, et al (2010) Diagnosis-specific prognostic factors, indexes, and treatment outcomes for patients with newly diagnosed brain metastases: a multi-institutional analysis of 4,259 patients Int J Radiat Oncol Biol Phys 77 655–661 https://doi.org/10.1016/j.ijrobp.2009.08.025
34. Sperduto PW, N Kased, and D Roberge et al (2012) Summary report on the graded prognostic assessment: an accurate and facile diagnosis-specific tool to estimate survival for patients with brain metastases J Clin Oncol 30 419–425 https://doi.org/10.1200/JCO.2011.38.0527 PMCID: 3269967
35. Suh SY, Leblanc TW, and Shelby RA, et al (2011) Longitudinal patient-reported performance status assessment in the cancer clinic is feasible and prognostic J Oncol Pract 7 374–381 https://doi.org/10.1200/JOP.2011.000434 PMCID: 3219464
36. Taylor AE, Olver IN, and Sivanthan T, et al (1999) Observer error in grading performance status in cancer patients Support Care Cancer 7 332–335 https://doi.org/10.1007/s005200050271 PMID: 10483818
37. Uno H, Cai T, and Tian L et al (2007) Evaluating prediction rules for t-year survivors with censored regression models J Am Stat Assoc 102 527–537 https://doi.org/10.1198/016214507000000149
38. NCI Dictionary of Cancer Terms
Appendix I
Table of Contents
PRPS Calculation......................................................................................................................13
Agreement between PRPS and KPS...............................................................................14
Prognostic Model Discrimination and Calibration...............................................................17
Model Specification..............................................................................................................17
Checking Linearity Assumption.........................................................................................17
Checking Proportional Hazards Assumption..................................................................18
Outlier Detection....................................................................................................................19
Full Model Summary.......................................................................................................20
KPS Model Summary......................................................................................................21
PRPS Model Summary...................................................................................................22
Likelihood Ratio Test...................................................................................................................23
Model discrimination....................................................................................................................24
C-statistic...........................................................................................................................24

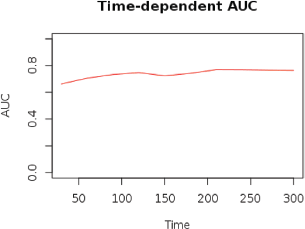

Cumulative Time dependant AUC / ROC Curves.......................................................25

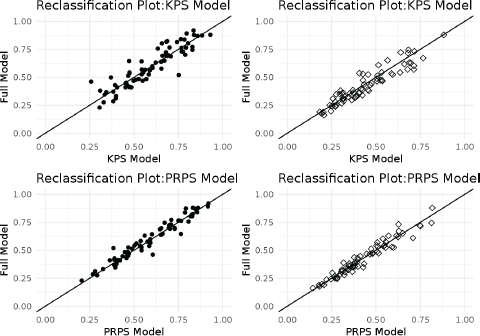

Reclassification Scatterplots.................................................................................................27

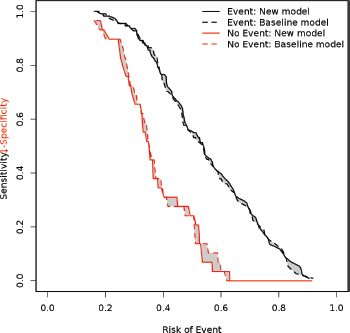

Risk Assesment Plots and IDI...............................................................................................27

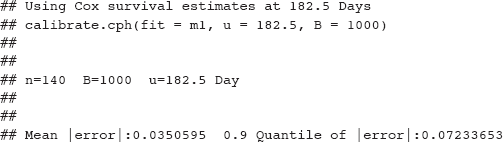

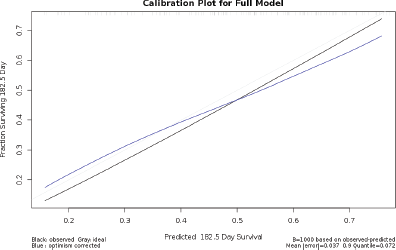

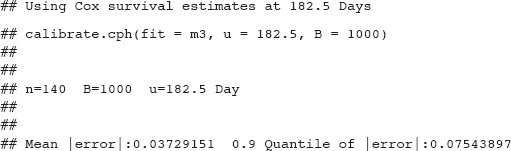

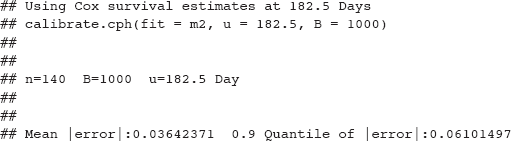

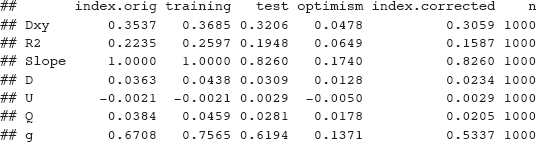

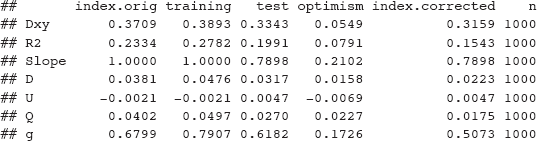

Model Calibration............................................................................................................................29
Packages Used for Analysis.........................................................................................................30
PRPS calculation
As indicated in the manuscript the PRPS was calculated as the sum physical and role function scores obtained from the baseline EORTC QLQ C30 questionnaires.
Physical Function Scale
Role Function Scale Scores
Patient reported Performance Scale
Agreement between PRPS and KPS

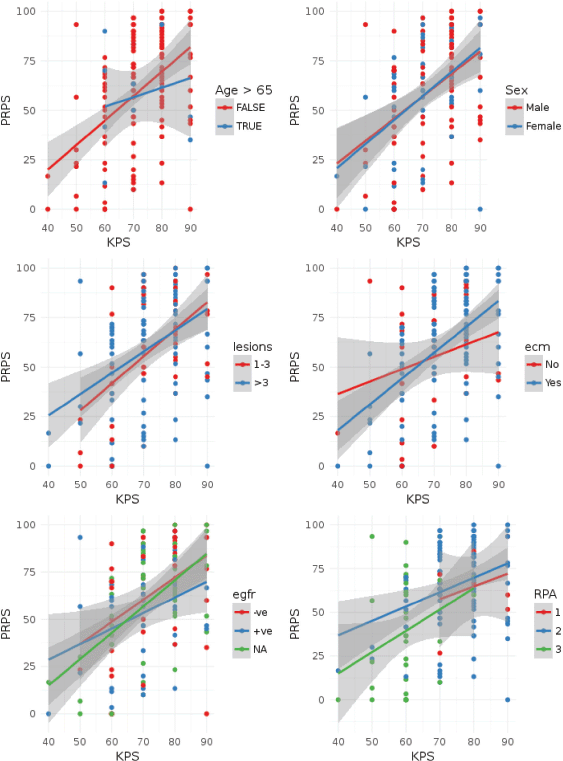

A plot of KPS against the PRPS shows significant degree of variability. The variability is demonstrated for other prognostic indicators like age, gender, RPA category, etc.

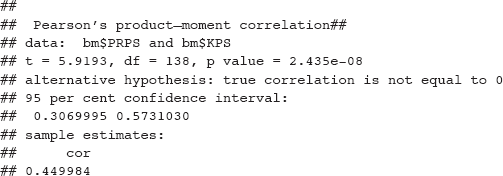

We will also calculate the Pearson correlation coefficient between KPS and PRPS to complement the graphical information above for different subgroups and for the whole dataset.
As can be seen from the above, the correlation coefficient seems to vary between 0.17 and 0.56 with the largest correlations being observed for the EGFR unknown subgroup and the subset with 1–3 brain metastases. However, overall the correlation coefficients indicate only a weak–moderate correlation.

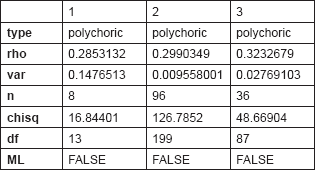

In order to formally acertain the magnitude of agreement between KPS and PRPS, we will use the polychoric correlation. The results of the polychoric correlation analysis is indicated below.
Polychoric correlation coefficient for age groups

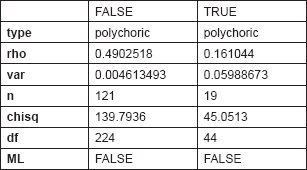

Polychoric correlation coefficient for gender

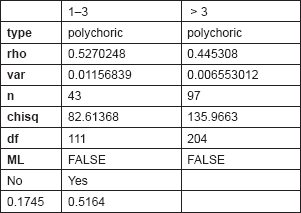

Polychoric correlation coefficient for number of lesions

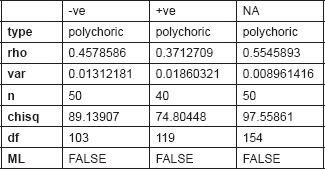

Polychoric correlation coefficient for EGFR receptor status
Polychoric correlation coefficient for RPA class

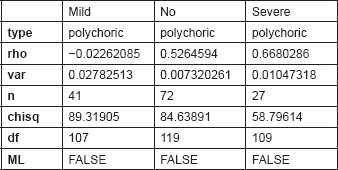

Polychoric correlation coefficient for cognitive impairment defined by MMSE score
Prognostic model discrimination and calibration
Model specification
First we will build the first model including both PRPS and KPS. The other explanatory variables to be included are:
1. Age (modelled as a continuous variable)
2. Gender (dichotomous variable)
3. KPS (modelled as as continous variable)
4. Extracranial Disease (dichotomous variable)
5. Number of mets (modelled as a factor variable: 1-3 mets and more than 3 mets)
6. EGFR mutation status (modelled as a factor variable:present, absent and unknown)
7. PRPS (modelled as continuous variable)
The three continuous variables would be expanded by restricted cubic splines using four knots. The choice of four knots for restricted cubic splines stems from the observation by Harrell et al, that using four knots offers an adequate fit of the model and is a good compromise between flexibility and loss of precision caused by overfitting a small sample.
Checking linearity assumption

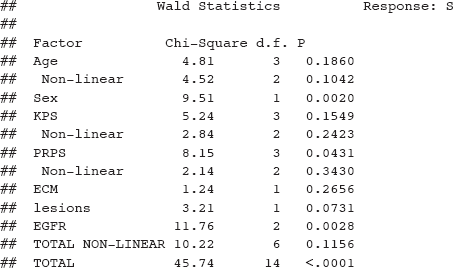

As shown by the results of the AONVA the linearity assumptions seems to hold true.

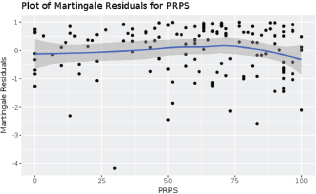

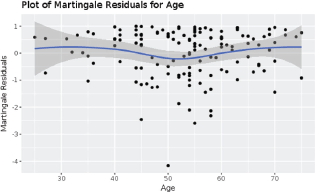

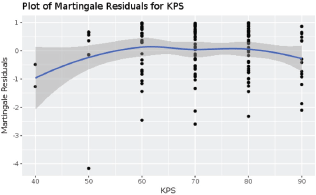

Further confirmation is obtained by visual examination of the plots of martingale residuals against the continuous variables, which allows us the check the functional forms of the covariates for the linearity assumptions. As the loess smooth lines and the 95% confidence intervals show the lines are approximately centred around 0 with no discernable pattern indicating that we can proceed with a linear assumption.
Checking proportional hazards assumption

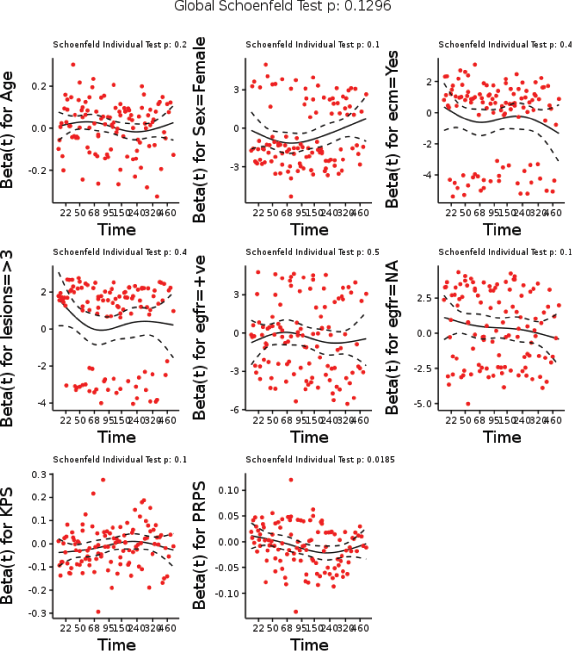

We now check the proportional hazards assumption using scaled shoenfeld residual both using hypothesis testing and graphical methods.
As can be seen from the plots above, the proportional hazards assumption holds true. The global test of proportional hazards penalised for the 8 degrees of freedom is non-significant with p value of 0.13 indicating that the proportional hazards assumption is not violated.
Outlier detection

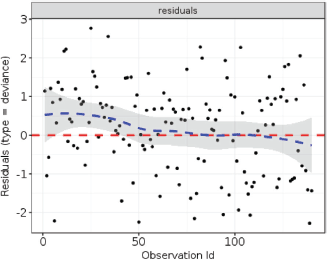

In the plot below, we fit the deviance residuals to the observation ID to detect overtly influential outliers. As can be seen, there are no significant outliers detected. The loess smooth line is approximately centred around 0 with no definite pattern. Most observations lie within the 1 standard deviation.
From the above, we can see that the assumptions of the cox proportional hazards model hold true. The final full model can thus be specified as a linear combination of the covariates.

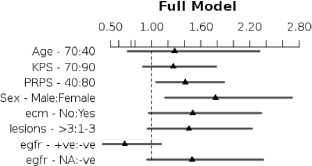

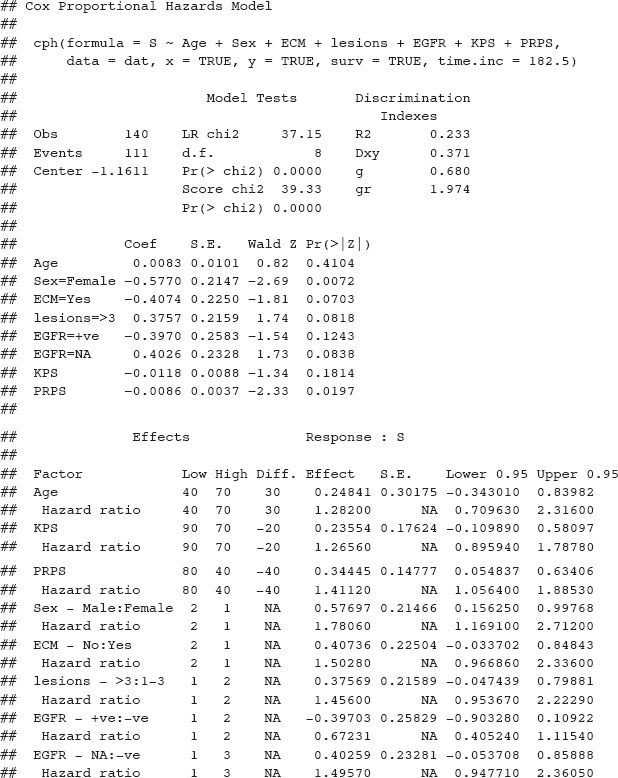

Full model summary

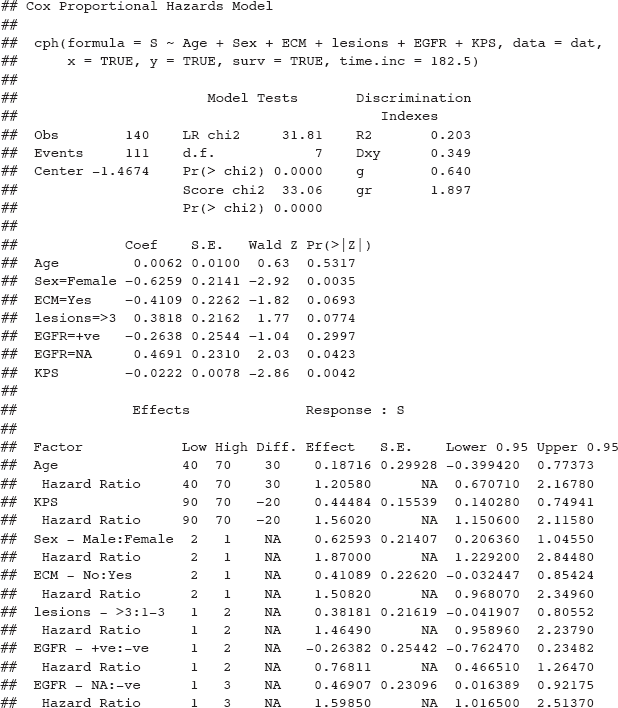

KPS model summary

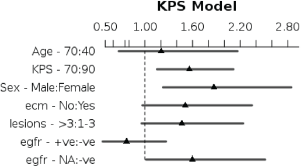

The KPS model (model m2) is specified below. In this model PRPS was not included.

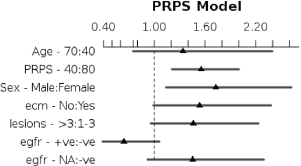

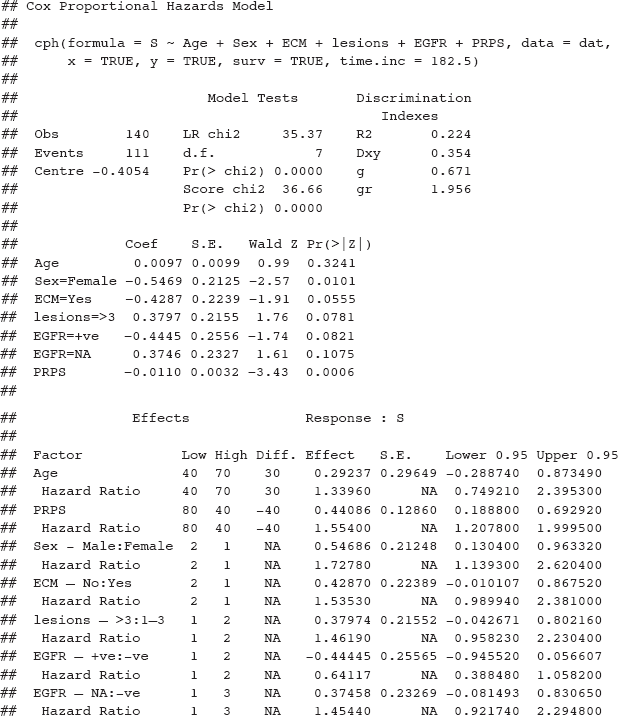

PRPS model summary
The PRPS model (model m3) is specified below. In this model KPS is not included.
Likelihood ratio test
The likelihood ratio test is a test of model goodness to fit for two nested models. If the likelihood ratio test is not significant, it indicates that the smaller model can explain the variance in the data as well as the larger model. Hence, we can check if the addition of PRPS to a model with KPS and vice versa results in a better model fit. The likelihood ratio test of the full model versus the model with KPS is shown below

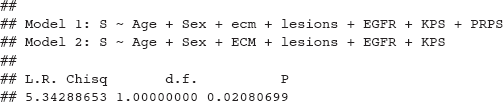

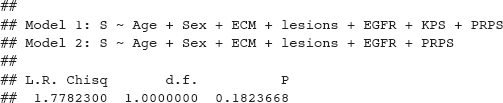

As we can see comparing the full model with the model including KPS, the likelihood ratio test shows that inclusion of PRPS accounts for enough variance that we can reject the null hypothesis that the coefficient for PRPS equals 0. In other words, the models are not the same.
As we can see comparing the full model with the model including PRPS, the likelihood ratio test shows that inclusion of KPS does not account for enough variance that we can reject the null hypothesis that the coefficient for KPS equals 0. In other words the models are the same or that the goodness to fit is not improving with the addition of KPS to a model which already includes PRPS.
Model discrimination
C-statistic
The Harrell’s C Index is a global index for validation of a prognostic model. It is an unitless index of the rank correlation between the predicted prognosis and the actual observed prognosis. A model with a higher predictive discriminatory ability has a higher C-index. A higher value implies that the model assigns a higher probability of survival to patients with higher survival times.
First for the full model
C-index for the Full Model
For the KPS model
C-index for the KPS Model
For the PRPS model
C-index for the PRPS Model
Cumulative time-dependant AUC/ROC
We will use the survAUC package to calculate the time-dependant ROC curves and the AUC curves from the three model. Summary measure of the time-dependant AUC will also be calculated as iAUC. In the first setting, we will calculate the ROC using the Cumulative case/dynamic control method proposed by Uno et al.
Full Model
KPS Model
PRPS model
Reclassification scatterplots
We divided the survival outcomes by the median survival to derive two groups of patients: one with survival times of 182.5 days or less and the other whose survival times was more than 182.5 days. Patients with survival less than or equal to median were classified as having a ‘Poor Outcome’, while the others were considered to have a ‘Good Outcome’. Predicted mortality probablities at 182.5 days were then obtained from the three models. Scatter plots of predicted mortality by the full model verses the KPS model and the PRPS models were then created. The density or the number of points above and below the diagonal line was thus an indicator of the accuracy of prediction. For patients with a Good Outcome (i.e. median survival > 182.5 days), points lying below and to the right of the diagonal indicated that the full model was a better predictor of the actual survival and vice versa.
Risk assessment plots and IDI
Risk assessment plots are plots in which sensitivity for those with events and one specificity for those without events against the calculated risk are depicted in the same figure. The dotted lines represent the curves drawn from the data obtained from the reference model, while the solid lines represent those obtained from the new model. In our case, we designated the reference model as the KPS and PRPS models, respectively, and the new model as the full model to ascertain the added benefit of adding PRPS or KPS, respectively. The area under curve between the dotted and dashed lines are used to derive the Integrated Discrimination Improvement. In this case, the package shows the integrated discrimination improvement for both events and non-events. This makes the risk assessment plot more informative than an ROC plot because it illustrates separately how good each model is for both those with and without events. Improved performance for assigning lower risk to non-event individuals moves the reference curve (red dashed line) toward the lower-left corner (red solid line), whereas improved performance for assigning higher risk to event individuals moves the reference curve (black dashed line) towards the top-right (black-solid line).
KPS model versus full model
PRPS model versus full model
These two plots demonstrate addition of PRPS to KPS results in a slight improvement in the predictive ability with greater improvement in discriminating patients who do not have the event, that is death.
The following table shows the Integrated Discrimination Improvement statistics with 95% confidence intervals of the same.
Integrated Discrimination Improvement
As the table above shows the IDI is better, when PRPS is added to the KPS model. The IDI change is approximately 17%, while when KPS is added to PRPS the IDI is only 4%.
Model calibration
Model calibration was assessed using the calibrate command of the RMS package which uses bootstrapping to get optimism corrected estimates of the estimates of predicted versus observed values.
Packages used for analysis
The following packages were used for analysis:
RStudio Team (2016). RStudio: Integrated Development Environment for R. RStudio, Inc., Boston, MA. http://www.rstudio.com/.
R Core Team (2017). R: A Language and Environment for Statistical Computing. R Foundation for Statistical Computing, Vienna, Austria. https://www.R-project.org/.
Wing MKCfJ, Weston S, Williams A, Keefer C, Engelhardt A, Cooper T, Mayer Z, Kenkel B, Team tRC, Benesty M, Lescarbeau R, Ziem A, Scrucca L, Tang Y, Candan C and Hunt. T (2017). caret: Classification and Regression Training. R package version 6.0-77, https://CRAN.R-project.org/package=caret.
Borchers HW (2017). pracma: Practical Numerical Math Functions. R package version 2.0.7, https://CRAN.R-project.org/package=pracma.
Robin X, Turck N, Hainard A, Tiberti N, Lisacek F, Sanchez J and Müller M (2011). “pROC: an open-source package for R and S to analyze and compare ROC curves.” BMC Bioinformatics, 12, pp. 77.
Pickering “W, Endre ZH and Cairns” D (2017). rap: Generates Risk Assessment Plot and reclassification metrics. R package version 0.4.
Mogensen UB, Ishwaran H and Gerds TA (2012). “Evaluating Random Forests for Survival Analysis Using Prediction Error Curves.” Journal of Statistical Software, 50(11), pp. 1-23. http://www.jstatsoft.org/v50/i11/.
Gerds TA (2017). prodlim: Product-Limit Estimation for Censored Event History Analysis. R package version 1.6.1, https://CRAN.R-project.org/package=prodlim.
Potapov S, Adler W and Schmid. M (2012). survAUC: Estimators of prediction accuracy for time-to-event data.. R package version 1.0-5, https://CRAN.R-project.org/package=survAUC.
Kassambara A and Kosinski M (2017). survminer: Drawing Survival Curves using ‘ggplot2’. R package version 0.3.1, https://CRAN.R-project.org/package=survminer.
Kassambara A (2017). ggpubr: ‘ggplot2’ Based Publication Ready Plots. R package version 0.1.2, https://CRAN.R-project.org/package=ggpubr.
Fox J (2016). polycor: Polychoric and Polyserial Correlations. R package version 0.7-9, https://CRAN.R-project.org/package=polycor.
Auguie B (2017). gridExtra: Miscellaneous Functions for “Grid” Graphics. R package version 2.3, https://CRAN.R-project.org/package=gridExtra.
Harrell Jr FE (2017). rms: Regression Modeling Strategies. R package version 5.1-0, https://CRAN.R-project.org/package=rms.
Koenker R and Ng P (2017). SparseM: Sparse Linear Algebra. R package version 1.76, https://CRAN.R-project.org/package=SparseM.
Harrell Jr FE, Dupont wcfC and others. m (2017). Hmisc: Harrell Miscellaneous. R package version 4.0-3, https://CRAN.R-project.org/package=Hmisc.
Wickham H (2009). ggplot2: Elegant Graphics for Data Analysis. Springer-Verlag New York. ISBN 978-0-387-98140-6, http://ggplot2.org.
Zeileis A and Croissant Y (2010). “Extended Model Formulas in R: Multiple Parts and Multiple Responses.” Journal of Statistical Software, 34(1), pp. 1-13. doi: 10.18637/jss.v034.i01 http://doi.org/10.18637/jss.v034.i01.
Therneau T (2015). A Package for Survival Analysis in S. version 2.38, https://CRAN.R-project.org/package=survival.
Terry M. Therneau and Patricia M. Grambsch (2000). Modeling Survival Data: Extending the Cox Model. Springer, New York. ISBN 0-387-98784-3.
Sarkar D (2008). Lattice: Multivariate Data Visualization with R. Springer, New York. ISBN 978-0-387-75968-5, http://lmdvr.r-forge.r-project.org.
Daróczi G and Tsegelskyi R (2015). pander: An R Pandoc Writer. R package version 0.6.0, https://CRAN.R-project.org/package=pander.
Foundation TAS (2013). SparkR: R frontend for Spark. R package version 1.6.1.
